您的位置：首页 > 产品中心 > 导电油墨
产品中心
导电油墨

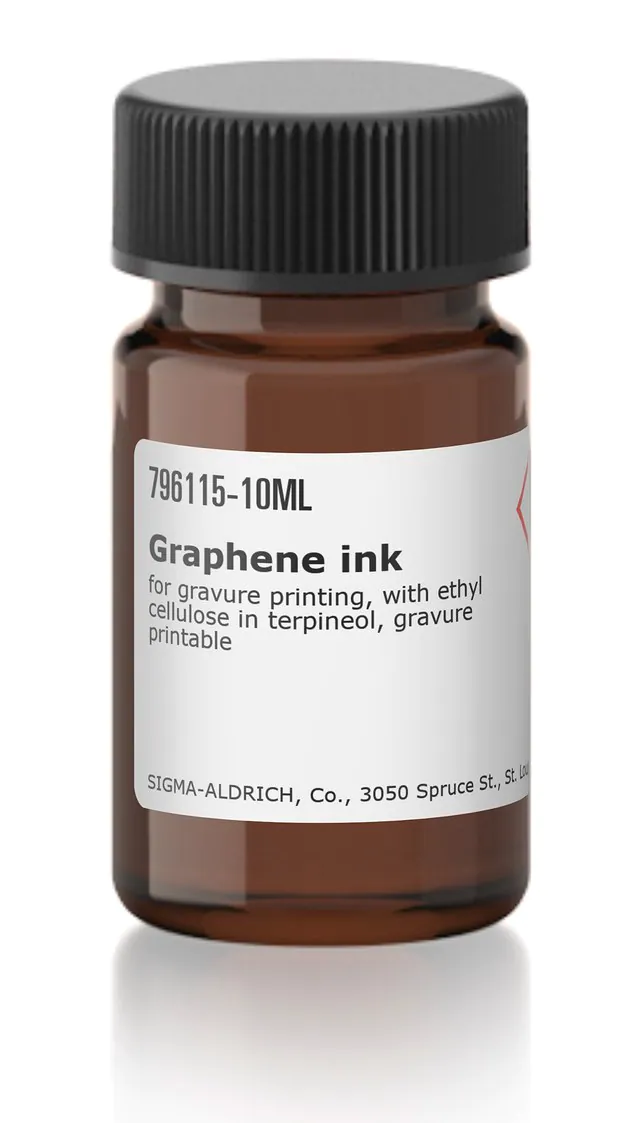

graphene ink
| 产品编号： | 3092683 |
| 规格： | for gravure printing, with ethyl cellulose in terpineol, gravure printable |
| 包装规格： | 10 ML |
| 产品类别： | 现货产品 |
| 品牌： | Sigma-Aldrich |
| 优惠价： | 立即咨询 |
产品别名
导电油墨
graphene ink
conductive ink
导电墨水
结构式
产品性质
| form【形式】 | liquid |
| resistivity【电阻率】 | 0.003-0.008 Ω-cm (thermally annealed 250 ℃ for 30 minutes, film thickness >100 nm) |
| Particle size【粒径】 | ≤3 μm |
| surface tension【表面张力】 | 30-35 dyn/cm |
| Viscosity【粘度】 | 0.75-3 Pa.s(25 ℃) (shear viscosity at 100 s-1, 25 ℃) |
| bp | 213-218 ℃ (Terpineol) |
| density | 0.9-1.1 g/mL at 25 ℃ |
| SMILES string | OC(C1=C2C(C3=C(C4=C(C5=C(C6=C(C7=C(C8=C(C9=C(C%10=C(C%11=C(C%12=C(C%13=C(C%14=C(C%15=CC=C%16O)C%16=C%17)C%17=C%18)C%18=C%19C(O)=O)C%19=C%20)C%20=C%21O)C%21=C%22)C%22=C%23)C%23=C%24O)C%24=C%25)C%25=C%26C(O)=O)C%26=C%27)C%27=C2)=C%28C%29=C(C%30=C%31C%28=C%3 |
| packaging【包装】 | 10 mL in glass bottle |
基本信息
| General description【一般描述】 | Gravure printable graphene dispersion has shown promising uses in printed and flexible electronics owning to its high speed and high resolution of deposition. |
| Application【应用】 | Formulated for Gravure printing. Curing Condition: 250-350 ℃, 20-30 min |
| Legal Information【法律信息】 | Sold under Material Transfer Agreement with Mark Hersam group at Northwestern University. |
安全信息
| Pictograms【象形图】 | GHS07 |
| Signal word【警示用语：】 | Warning |
| Hazard Statements | H315 - H319 |
| Precautionary Statements | P302 + P352 - P305 + P351 + P338 |
| Hazard Classifications【危险分类】 | Eye Irrit. 2 - Skin Irrit. 2 |
| Storage Class Code【储存分类代码】 | 10 - Combustible liquids |
| WGK | WGK 2 |
